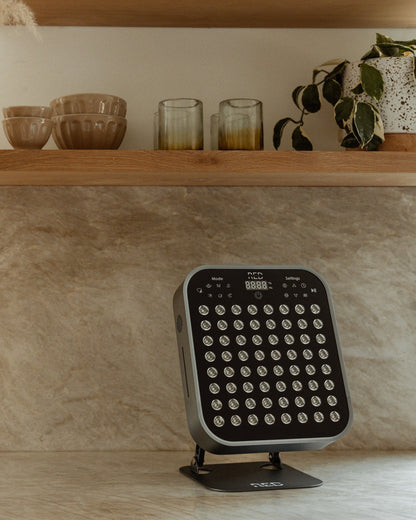

The Small Panel is a compact, full-power introduction to red light therapy at home. Sixty-four 5-watt LEDs deliver six wavelengths of red and near-infrared light with measured irradiance of 125 mW/cm² at three inches, all from a panel light enough to move between rooms and set on a tabletop stand. Seven preset modes, voice and touch control, and a fully adjustable custom mode make each session quick to start, and a 3-year warranty with free replacement backs it up.
Why Customers Choose This Product
- Six wavelengths in one panel: 610, 630 and 660 nm red plus 810, 830 and 850 nm near-infrared.
- Strong measured output: 125 mW/cm² at 3 inches, 98 mW/cm² at 6 inches and 86 mW/cm² at 12 inches.
- Seven preset modes plus a custom mode for intensity, pulse rate and run time.
- Touch keys and voice control for hands-free operation mid-session.
- Low EMF and flicker-free, with UV400 protective glasses included.
- 3-year warranty with free replacement, plus a 30-day return window.
Product Highlights
Six-Wavelength Coverage
Red at 610, 630 and 660 nm sits alongside near-infrared at 810, 830 and 850 nm. The blend is weighted toward 660 and 850 nm at roughly 42 percent each, so every session combines surface and deeper coverage.
High-Output LEDs
Sixty-four 5-watt 3535 LEDs on a ceramic substrate push light output up to 320 watts. The ceramic base keeps them running efficiently session after session.
Seven Presets and a Custom Mode
Presets cover common at-home routines, and the custom mode lets you set red and near-infrared intensity, pulse value and run time yourself.
Adjustable Pulsing
Pulsing runs from 0 to 9,999 Hz. Leave it off for steady output or dial in a frequency to suit your routine.
Touch and Voice Control
Change modes by touch or by voice without interrupting your position. A 30-degree beam angle keeps the light focused on the area you are treating.
Aluminum Build, Long LED Life
The aluminum shell moves heat away quickly for fast dissipation during longer sessions. LEDs are rated for more than 100,000 hours.
Why I Chose This for RevitaSpring
One of the things I love about red light therapy is how easily it can become part of an everyday wellness routine—but I also know that not everyone has the space or budget for a large, full-body panel.
That’s exactly why this smaller panel caught my attention.
I wanted something compact and easy to use without sacrificing the features I look for in a quality red light device. With six wavelengths of red and near-infrared light, strong output, low EMF, flicker-free operation, and the ability to choose from simple preset modes or customize your own session, this little panel packs a lot into a surprisingly small footprint.

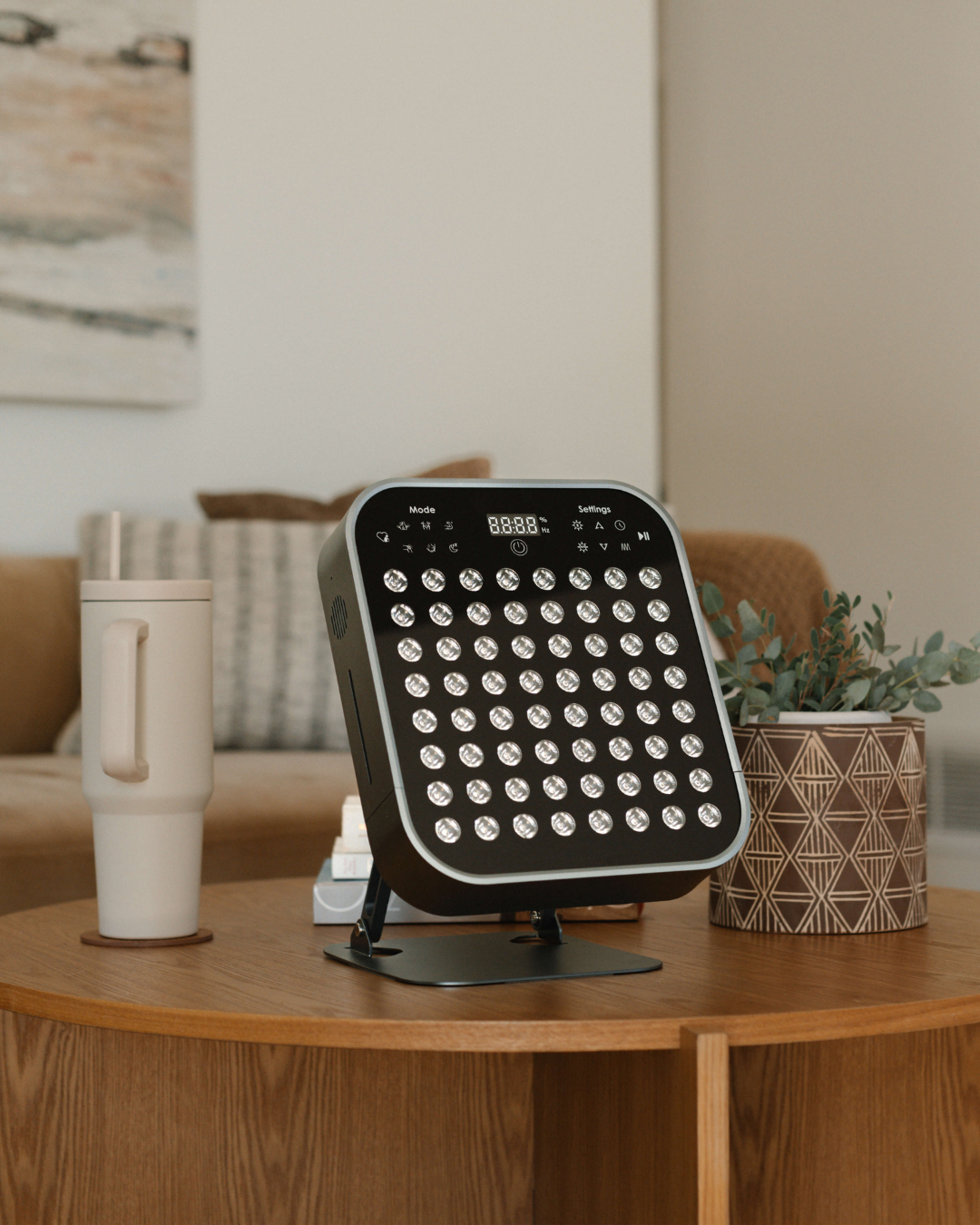

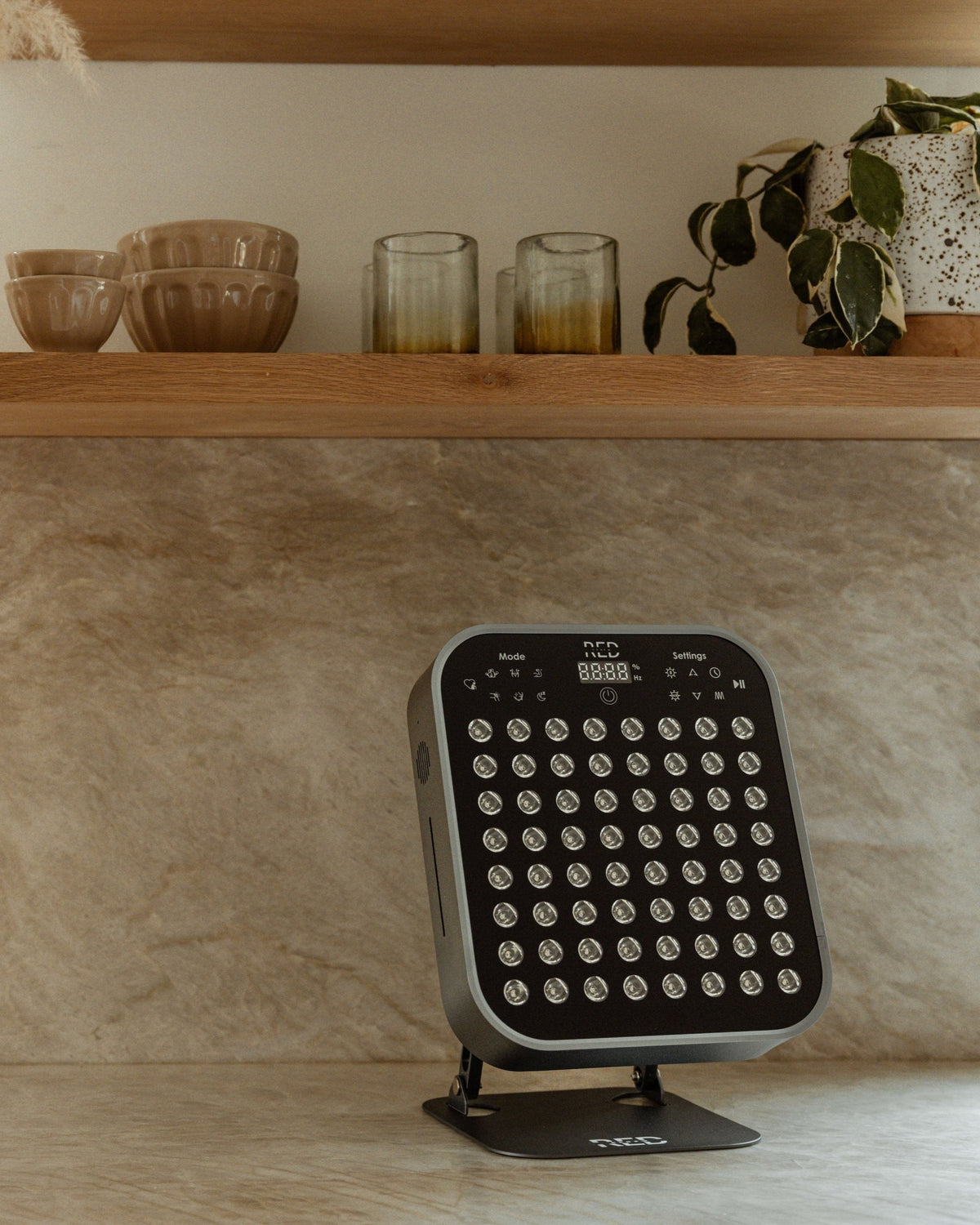

I also love that it weighs less than 8 pounds and comes with a tabletop stand. You can use it in a bedroom, home office, workout space, or wherever it fits naturally into your routine—and move it when you need to.
For me, wellness tools should be something you can realistically use consistently, not something that ends up taking up space in the corner. This panel makes quality at-home red light therapy feel approachable, flexible, and easy to incorporate into everyday life.
That combination of quality, versatility, and simplicity is exactly what I look for when choosing products for RevitaSpring.
— Wendy
Founder, RevitaSpring
Specifications

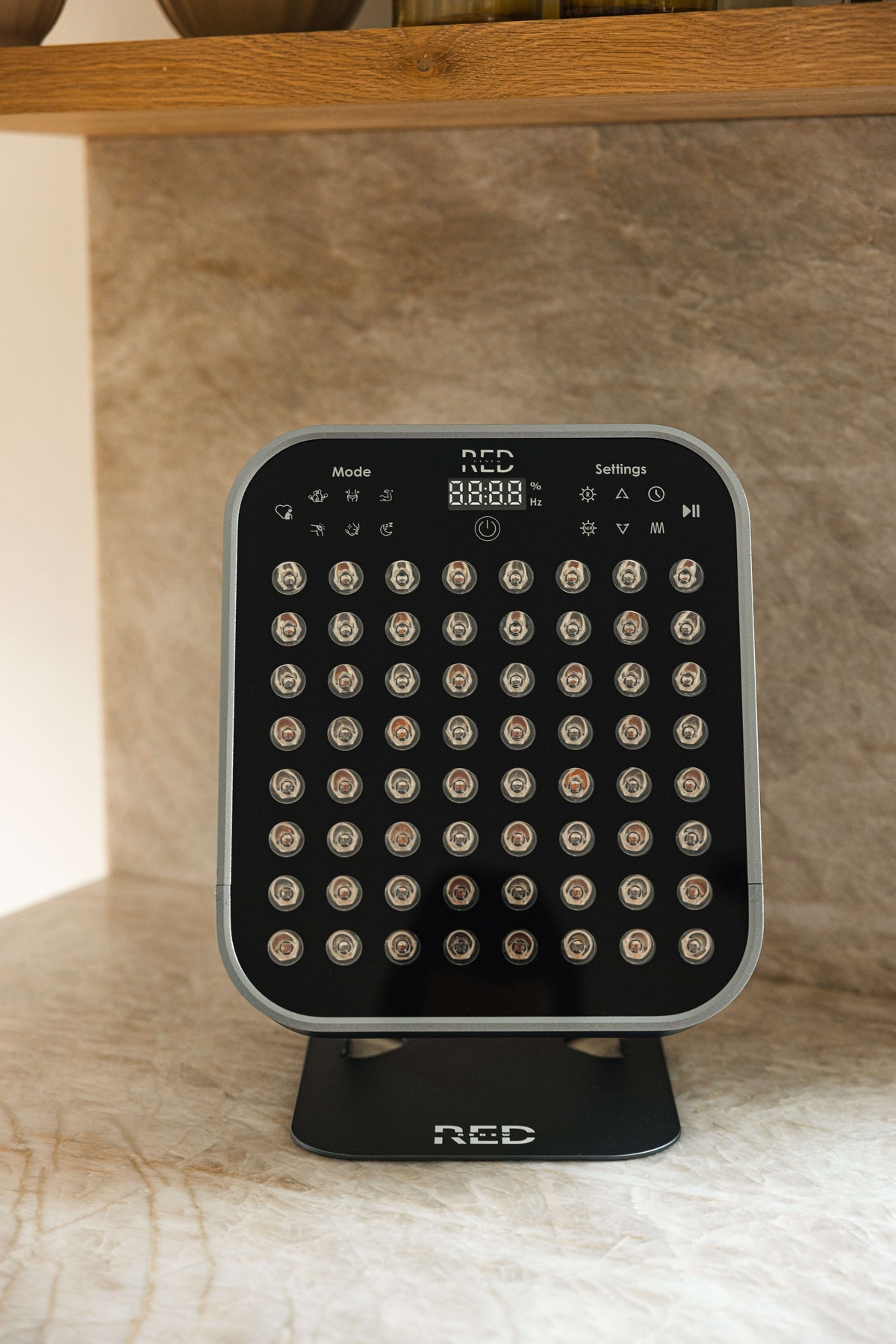

- LEDs: 64 x 5 W 3535 LEDs with ceramic substrate
- Wavelengths: 610 nm, 630 nm, 660 nm, 810 nm, 830 nm, 850 nm
- LED density: approximately 3% 610 nm, 5% 630 nm, 42% 660 nm, 3% 810 nm, 5% 830 nm, 42% 850 nm
- Irradiance (spectrometer): 125 mW/cm² at 3 in, 98 mW/cm² at 6 in, 86 mW/cm² at 12 in
- Modes: 7 presets (muscle recovery, sleep optimization, skin care, fitness, fat burning, pain relief, joint health) plus custom mode
- Pulsing range: 0 to 9,999 Hz
- Controls: touch key and voice control
- Beam angle: 30 degrees
- EMF: low EMF
- Flicker: none
- Light output: up to 320 W
- Power consumption: 1500 VA
- Input: AC 100-240V
- LED lifespan: more than 100,000 hours
- Housing: aluminum shell
- Dimensions: 12.2 in tall x 10.5 in wide x 2.4 in deep
- Weight: 7.7 lb
- In the box: panel, tabletop stand, UV400 protective glasses, power cable, user manual
- Warranty: 3 years with free replacement; replacements warranted for 6 months
- Returns: 30-day return period for a full refund minus shipping
- Shipping: up to 2 business days to leave the warehouse, then a shipping window of up to 6 business days; each device ships individually
Ideal For
- Anyone new to red light therapy who wants presets rather than manual setup.
- Targeted sessions on a specific area, thanks to the focused 30-degree beam.
- Apartments, bedrooms and home gyms where a full-size panel will not fit.
- Households that want to move the panel between rooms, at 7.7 lb with a tabletop stand.
- Experienced users who want control over intensity, pulse rate and session length.
Important Information
- Wear the included UV400 protective glasses during sessions and avoid looking directly into the LEDs.
- Read the user manual before first use and follow the stated session times and distances. Usage suggestions are for reference only and are not medical guidance.
- Set the panel on the supplied tabletop stand on a stable, level surface with clear airflow around the aluminum shell.
- Use only the supplied power cable with a standard AC 100-240V outlet. Keep the device dry.
- Unplug before cleaning and wipe the surface with a soft, dry or lightly damp cloth. Do not submerge any part of the device.
- Consult a qualified health professional before use, particularly if you are pregnant, taking photosensitizing medication, or have a medical condition. Seek professional medical attention for any serious or life-threatening condition.
- Stop using the device immediately if you notice any adverse reaction.
- Renew Red Light devices are not medical devices and are intended for cosmetic use only.
Frequently Asked Questions
Which wavelengths does The Small Panel use?
Six: red at 610, 630 and 660 nm, and near-infrared at 810, 830 and 850 nm. The 660 nm and 850 nm wavelengths make up roughly 42 percent of the array each.
What modes are available?
Seven presets covering muscle recovery, sleep optimization, skin care, fitness, fat burning, pain relief and joint health, plus a custom mode where you set red and near-infrared intensity, pulse value and run time.
What is the measured irradiance?
Measured with a spectrometer: 125 mW/cm² at 3 inches, 98 mW/cm² at 6 inches and 86 mW/cm² at 12 inches.
How do I control the panel?
It has both touch keys and voice control, so you can change modes without repositioning yourself mid-session.
How big is it and what is in the box?
The panel measures 12.2 by 10.5 by 2.4 inches and weighs 7.7 lb. The box contains the panel, a tabletop stand, UV400 protective glasses, a power cable and a user manual.
Will it work with my outlets?
The panel accepts AC 100-240V and draws 1500 VA, so it works with standard household outlets with the appropriate plug adapter.
Does it flicker or emit high EMF?
No. The panel is flicker-free and designed for low EMF output.
What warranty and return policy apply?
The device carries a 3-year warranty against defects in materials and workmanship with free replacement, and replacements are warranted for 6 months. Devices can be returned within 30 days for a full refund minus shipping.
How long does shipping take?
Allow up to 2 business days for the order to leave the warehouse, after which the shipping window of up to 6 business days begins. Each device ships individually because it is fragile.
If you want a portable panel with serious output, plenty of control and a 3-year warranty behind it, The Small Panel is a sensible place to start. Add it to your cart and it arrives ready to set up on any table.
