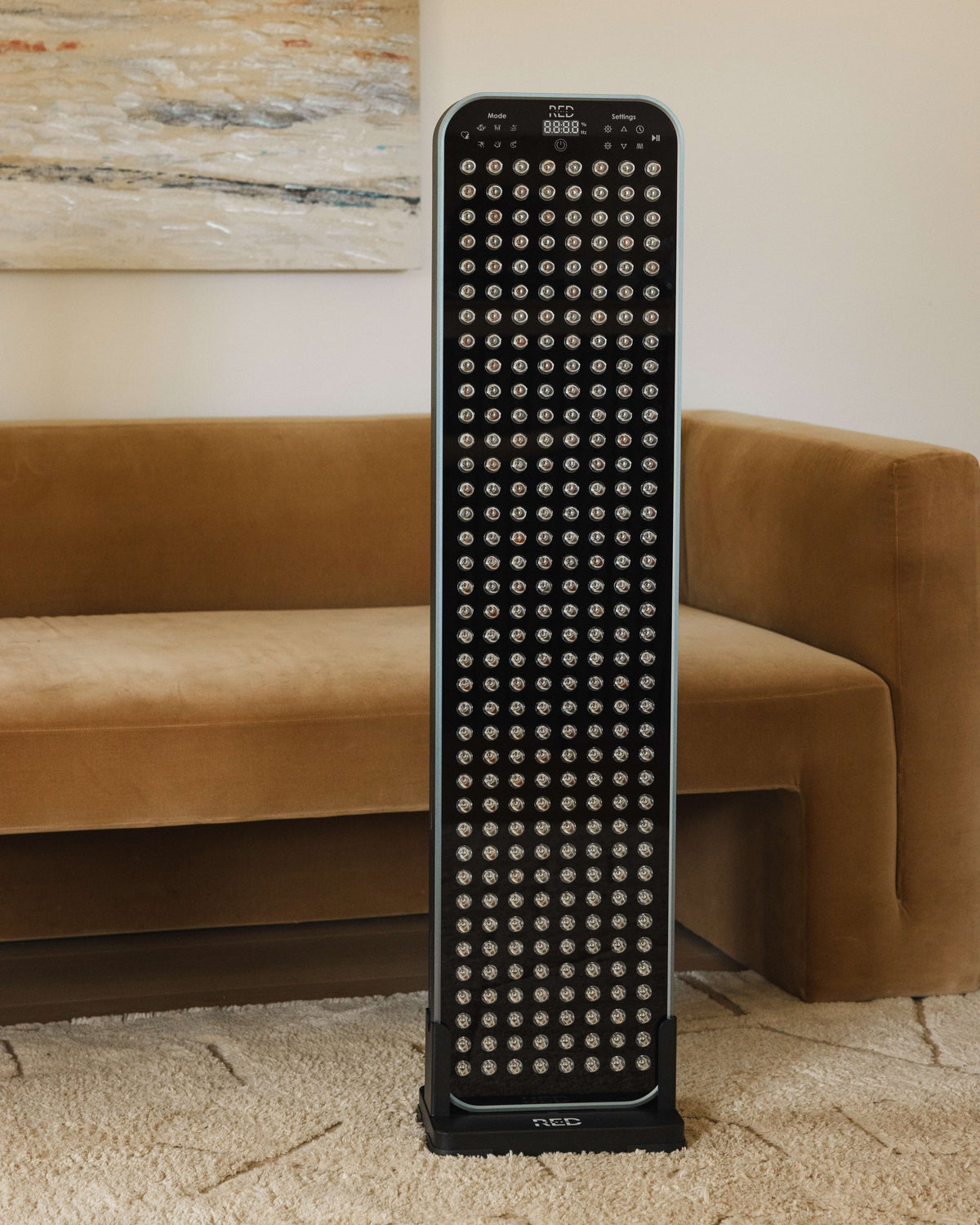

The Large Panel gives you broader coverage than a compact panel without taking over the room. Its 304 LEDs deliver six red and near-infrared wavelengths across a 43-inch aluminum panel, while the folding floor stand with small wheels makes it easier to position and store. Seven preset modes, custom controls, voice and touch operation, and a 3-year warranty make it a practical centerpiece for an at-home light therapy routine.
Why Customers Choose This Product
- Larger panel face for broader coverage in a single session.
- Six wavelengths: 610, 630 and 660 nm red plus 810, 830 and 850 nm near-infrared.
- Measured irradiance of 150 mW/cm² at 3 inches, 126 mW/cm² at 6 inches and 108 mW/cm² at 12 inches.
- Seven preset modes plus custom controls for intensity, pulse value and run time.
- Touch keys and voice control for hands-free adjustments.
- Folding floor stand with small wheels for easier positioning around the home.
- 3-year warranty with free replacement and a 30-day return window.
Product Highlights
Broad Panel Coverage
The 43-inch-tall panel covers more area than a small targeted device, so you can spend less time repositioning between areas.
Six-Wavelength Array
The array combines red light at 610, 630 and 660 nm with near-infrared light at 810, 830 and 850 nm. The wavelength mix is weighted toward 660 and 850 nm at approximately 42 percent each.
304 High-Output LEDs
The panel uses 304 5-watt 3535 LEDs with ceramic substrates. The aluminum shell is designed to help manage heat during operation.
Seven Presets and Custom Mode
Presets include Muscle Recovery, Sleep Optimization, Skin Care, Fitness, Fat Burning, Pain Relief and Joint Health. Custom mode lets you set red and near-infrared intensity, pulse value and run time.

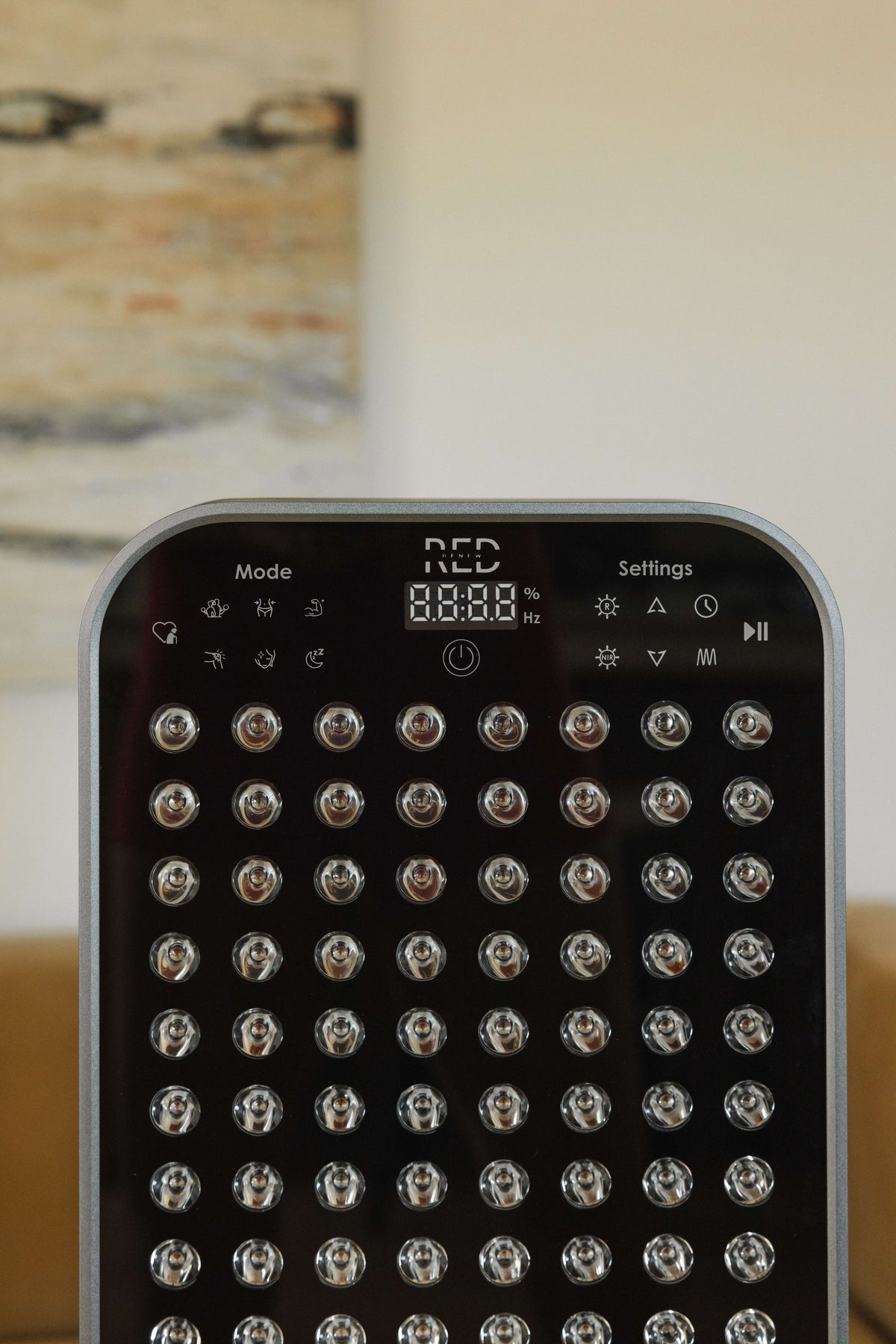

Touch and Voice Control
Adjust the panel with touch keys or voice control. Pulsing can be set anywhere from 0 to 9,999 Hz.

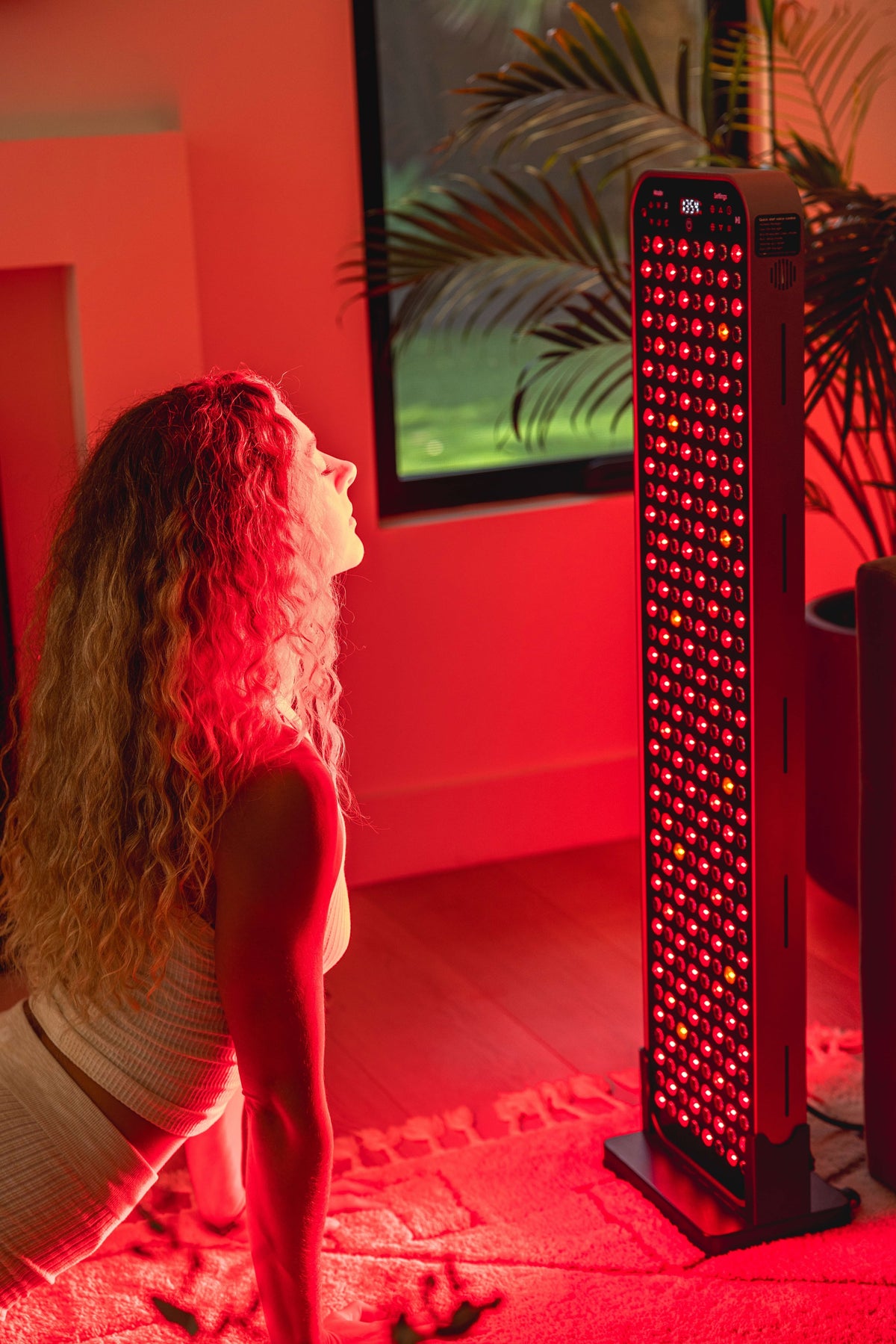

Folding, Wheeled Stand
The included floor stand folds for storage and has small wheels to help you move the 27.8-pound panel into position.
Why I Chose This for RevitaSpring
When I looked at The Large Panel, what stood out to me was the balance it offers. Not everyone needs—or has room for—a full-body red light therapy system, but sometimes a smaller panel just doesn't provide the amount of coverage you're looking for.
This one sits beautifully in between.
At 43 inches tall with 304 LEDs, it gives you much broader coverage while still being manageable enough for a bedroom, home gym or dedicated wellness space. I especially love the folding floor stand with wheels because it gives you the flexibility to move the panel where you want it and tuck it away more easily when you're finished.
The quality and versatility were important to me, too. It combines six wavelengths of red and near-infrared light with strong measured output, low EMF and flicker-free operation. You can choose one of the preset modes when you want to keep things simple or customize the intensity, pulse and session time as you become more comfortable with your routine.
But what ultimately made me want to offer The Large Panel at RevitaSpring is that it feels like such a practical option for everyday use. You're getting meaningful coverage and plenty of versatility without having to dedicate a large portion of your room to your equipment.
I believe wellness tools are most valuable when they fit naturally into your home and your life. For someone who wants to step up from a smaller, targeted device but isn't looking for a full-body system, I think The Large Panel fills that space beautifully.
That's exactly why I chose it for RevitaSpring.
— Wendy
Founder, RevitaSpring
Specifications
- LEDs: 304 x 5 W 3535 LEDs with ceramic substrate
- Wavelengths: 610 nm, 630 nm, 660 nm, 810 nm, 830 nm, 850 nm
- LED density: approximately 3% 610 nm, 5% 630 nm, 42% 660 nm, 3% 810 nm, 5% 830 nm, 42% 850 nm
- Irradiance (spectrometer): 150 mW/cm² at 3 in, 126 mW/cm² at 6 in, 108 mW/cm² at 12 in
- Modes: Muscle Recovery, Sleep Optimization, Skin Care, Fitness, Fat Burning, Pain Relief, Joint Health, plus custom mode
- Pulsing range: 0 to 9,999 Hz
- Controls: touch keys and voice control
- Beam angle: 30 degrees
- EMF: low EMF
- Flicker: none
- Materials: aluminum shell
- Power consumption: 1,500 VA
- Input: AC 100-240V
- Light output: up to 1,520 W
- LED lifespan: more than 100,000 hours
- Panel dimensions: 43 in tall x 10.2 in wide x 2.4 in deep
- Weight: 27.8 lb
- Stand: folding floor stand with small wheels
- Suggested distance: 6 to 12 inches from the treatment area
- Suggested use: 10 to 20 minutes per session, 3 to 5 times per week
- In the box: panel, folding floor stand, UV400 protective glasses, power cable and user manual
- Warranty: 3 years with free replacement; replacements warranted for 6 months
- Returns: 30-day return period for a full refund minus shipping
- Shipping: allow up to 2 business days to leave the warehouse, followed by a shipping window of up to 6 business days; each device ships individually
Ideal For
- People who want broader coverage than a compact panel provides.
- Home gyms, bedrooms and dedicated wellness spaces with room for a 43-inch panel.
- Households that want to move a panel between rooms without lifting a larger full-body system.
- Users who want preset modes alongside manual intensity, pulse and timing controls.
- Anyone building a repeatable light therapy routine around a single, versatile device.
Important Information
- Wear the included UV400 protective glasses during every session and avoid looking directly into the LEDs.
- Read the user manual and the manufacturer's contraindications before first use. Usage suggestions are for reference only and are not medical guidance.
- Set up the folding stand on a level, stable surface, check that it is secure before use, and keep clear space around the panel.
- Use the stand wheels carefully and avoid rolling the panel over uneven surfaces. Ask for help if you are not comfortable moving the device.
- Position the treatment area 6 to 12 inches from the panel as described in the manual.
- Use only the supplied power cable with a standard AC 100-240V outlet. Keep the device dry and allow airflow around the aluminum shell.
- Unplug before cleaning and wipe surfaces with a soft, dry or lightly damp cloth. Do not submerge any part of the device.
- Consult a qualified health professional before use, particularly if you are pregnant, taking photosensitizing medication, or have a medical condition. Seek professional medical attention for any serious or life-threatening condition.
- Stop using the device immediately if you notice any adverse reaction.
- Renew Red Light devices are not medical devices and are intended for cosmetic use only.
Frequently Asked Questions
How large is The Large Panel?
The panel measures 43 inches tall, 10.2 inches wide and 2.4 inches deep. It weighs 27.8 lb and comes with a folding floor stand with small wheels.
Which wavelengths does it use?
Six: red at 610, 630 and 660 nm, and near-infrared at 810, 830 and 850 nm. The 660 nm and 850 nm wavelengths each make up approximately 42 percent of the array.
What modes are available?
Seven presets: Muscle Recovery, Sleep Optimization, Skin Care, Fitness, Fat Burning, Pain Relief and Joint Health. Custom mode lets you set red and near-infrared intensity, pulse value and run time.
What is the measured irradiance?
Measured with a spectrometer: 150 mW/cm² at 3 inches, 126 mW/cm² at 6 inches and 108 mW/cm² at 12 inches.
How far away should I be, and how long is a session?
Renew suggests positioning the treatment area 6 to 12 inches from the panel, with sessions of 10 to 20 minutes, 3 to 5 times per week. Follow the manual included with your device.
What is included and how do I control it?
The box contains the panel, folding floor stand, UV400 protective glasses, power cable and user manual. Operate it with the touch keys or voice control.
Does it flicker or emit high EMF?
The panel is flicker-free and designed for low EMF output.
What warranty and return policy apply?
A 3-year warranty covers defects in materials and workmanship with free replacement, and replacements are warranted for 6 months. Devices can be returned within 30 days for a full refund minus shipping.
How do I clean and store it?
Unplug the panel, wipe it with a soft, dry or lightly damp cloth, and let it dry fully. Fold the stand for storage as described in the manual. Do not submerge any part of the device.
If you want broader coverage in a panel that still folds away and rolls into place, The Large Panel offers a practical middle ground between compact and full-body systems. Add it to your cart and build a repeatable routine around it.
